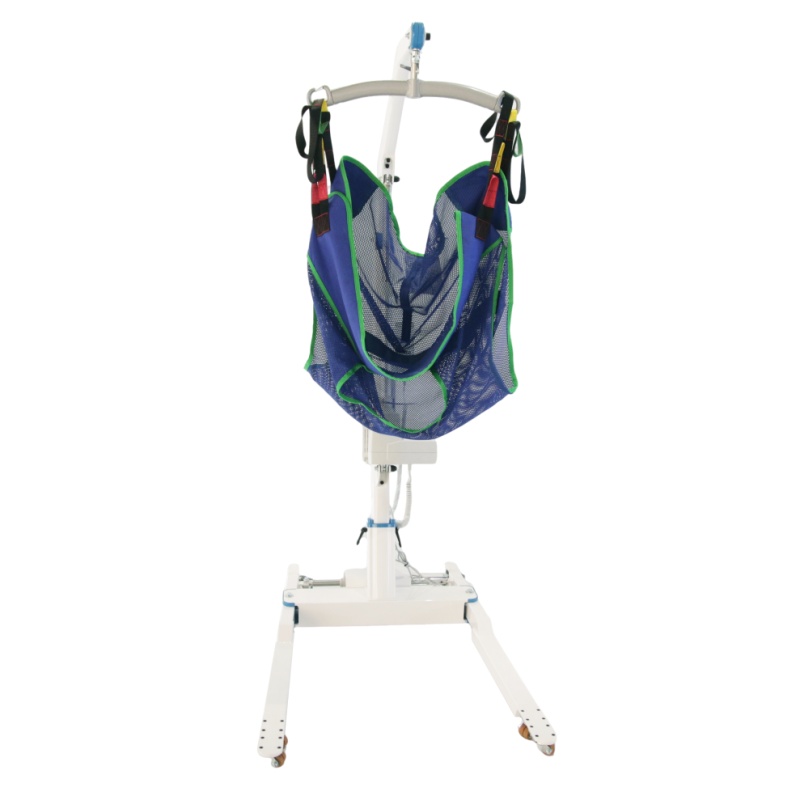

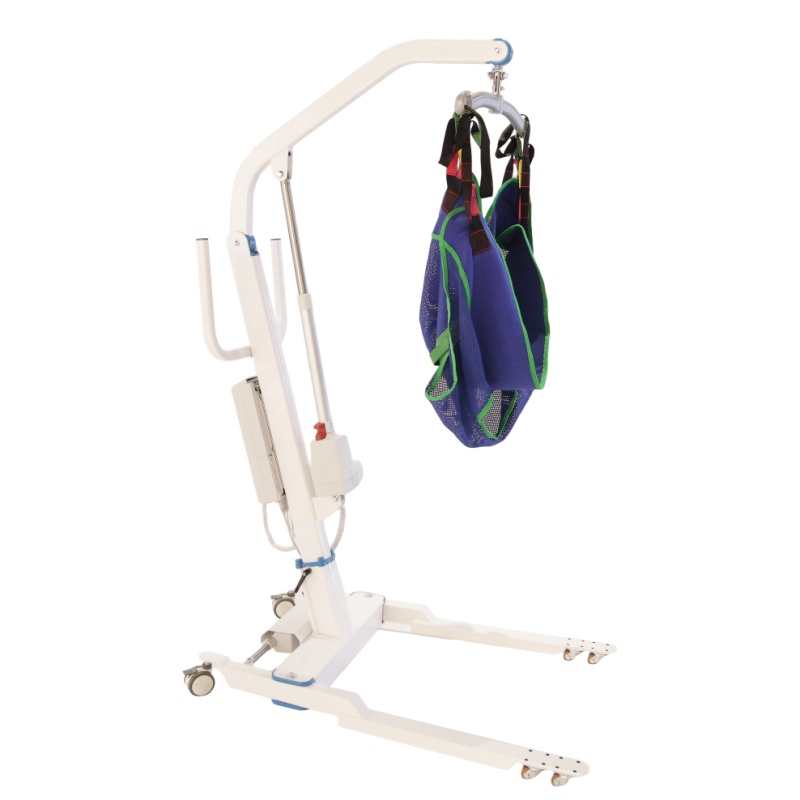

This ultra-low motorized patient lift is engineered for superior performance in demanding healthcare environments. Its combination of a lightweight aluminum frame, intelligent design, and safety-focused features ensures safe, comfortable, and efficient patient handling.
1. Lightweight & Durable Aluminum Lifter
The core structure of this aluminum lifter is constructed from high-strength aluminum alloy tubing, offering an optimal balance of robust durability and easy maneuverability.
Treated with a special anti-aging and anti-oxidation coating, the motorized patient lift maintains its professional appearance and structural integrity over long-term use in various clinical settings.
2. Effortless Maneuvering & Superior Stability
Featuring a 3-inch swivel caster with a brake at the rear and 1.5-inch front swivel casters, this lift provides exceptional mobility and easy locking for secure positioning.
The innovative 8-direction adjustable legs with electric width adjustment allow the base to adapt to different spaces, enhancing the overall stability of the patient lift.
3. Motorized Precision & Control
The electric control system enables smooth and precise height adjustment throughout its full range, allowing for accurate patient positioning.
This motorized patient lift ensures a controlled lift and lowering process, significantly reducing the risk of injury for both patients and caregivers.
4. Enhanced Safety & Emergency Assurance

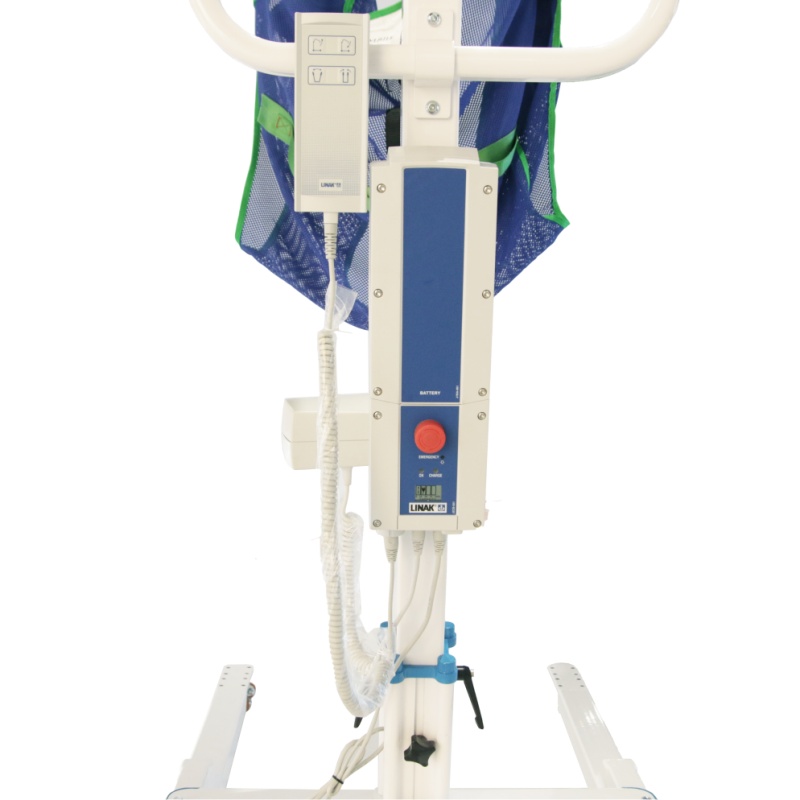

Designed with safety as a priority, this lift includes an emergency stop switch and a clear power display for immediate operator response and status monitoring.
The dedicated wired hand controller offers reliable operation, while the backup emergency manual lowering device on the lifting actuator guarantees a safe descent even in the event of a power failure.
5. Patient Comfort & Adaptive Support
The aluminum lifter is equipped with a high-strength sling and a soft, breathable hammock. The hammock features 4-position height adjustments at both front and rear for a personalized and secure fit.
A rotating hook design allows for easy micro-adjustments during lowering, ensuring a safe, stable, and comfortable transfer for the patient.

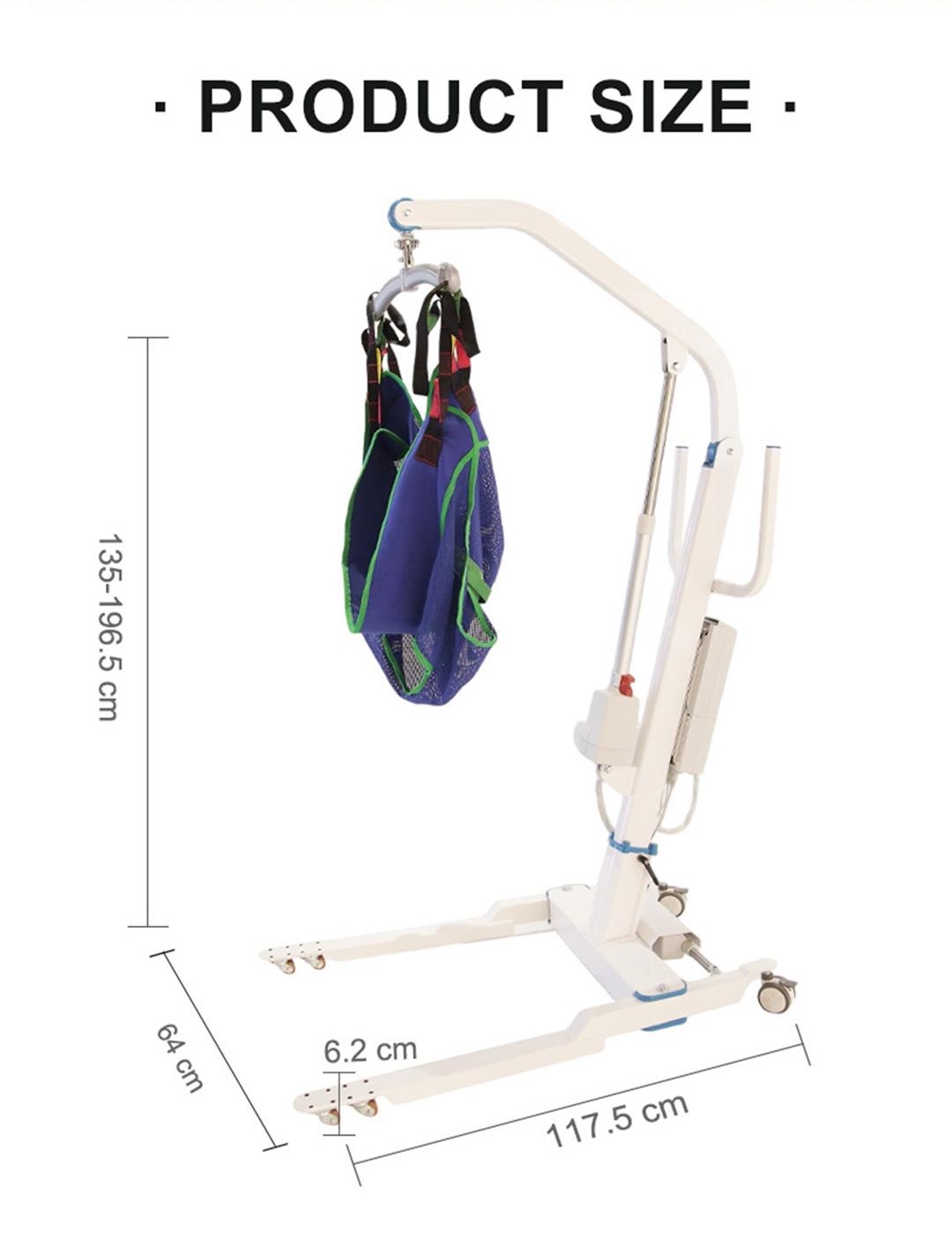

Item No. | DH079010 | Input Power Supply | AC 100V-240V/50-60HZ |
Overall Length | 1175±10mm | Lead-acid Battery | DC24V 2.6AH |
Overall Width | 640±10mm | Outrigger Electric Actuator | 3000N 24V |
Overall Height | 1350-1965±10mm | Boom Electric Actuator | 10000N 24V |
Outer Width of Outrigger | 640-1220±10mm | Front Wheel Diameter | 1.5 inch universal |
Inside Width of Outrigger | 590-1120±10mm | Rear Wheel Diameter | 3inch universal with brake |
Leg Opening Angle | 40° | Noise | <65DB |
Height of Qutrigger Use | 62±5mm | Packing Size | 126*71*41.5cm |
Maximum Depth of Outrigger | 595±10mm | Loading Capacity | 205kg |
Double Boom Weight | Net weight 43.5kg Gross weight 50.5kg | Single Boom Weight | Net weight 42.5kg Gross weight 49.5kg |
Adjustable Height of Double Boom | 395-1710±10mm | Adjustable Height of Single Boom | 410-1740±10mm |
