We redefine personal mobility by fusing advanced materials with smart engineering. This Carbon Fiber Wheelchair delivers unparalleled performance and portability, setting a new standard for active living.

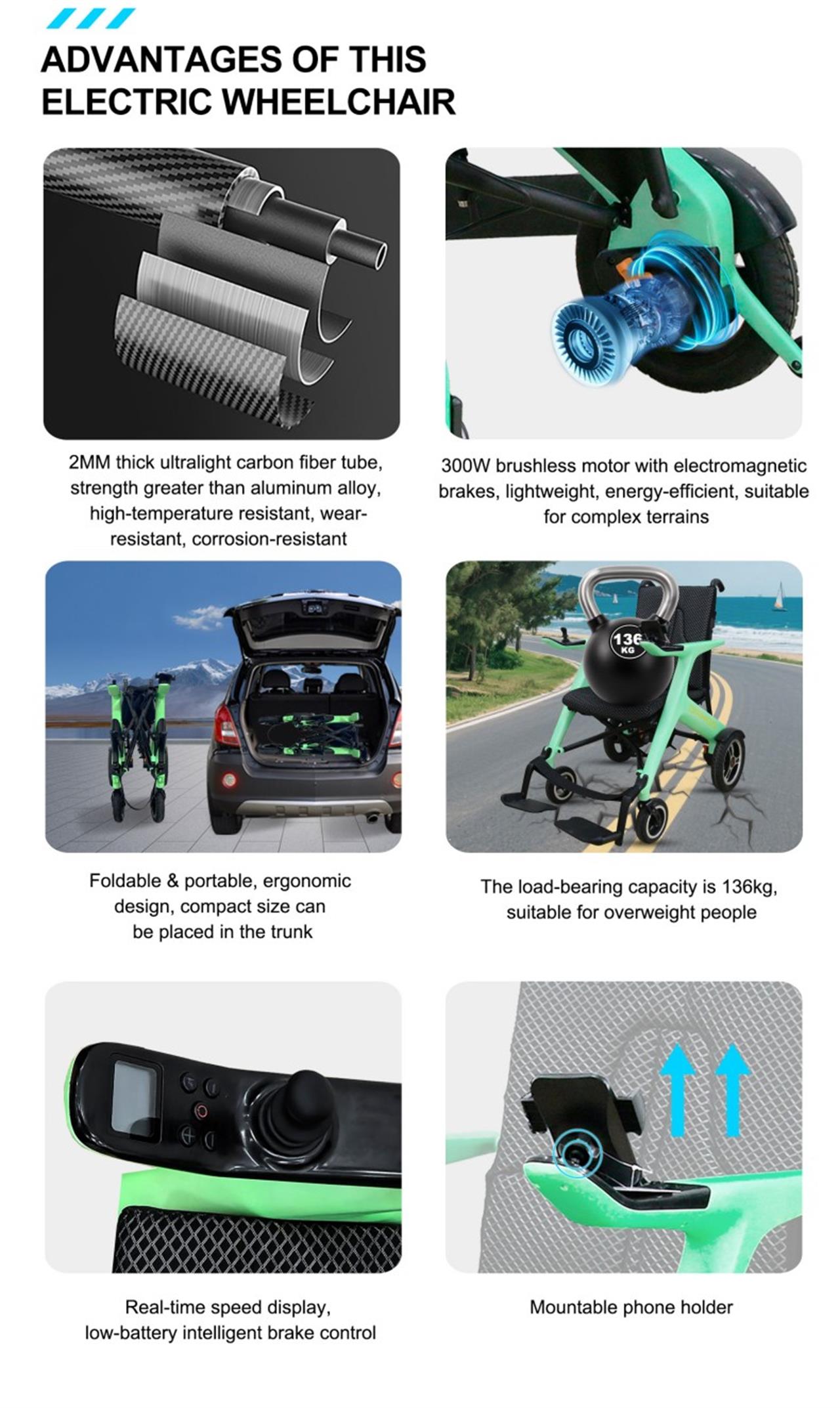

Ultralight & Durable Frame
The core of this Lightweight Carbon Fiber Wheelchair is its 2mm thick, high-strength carbon fiber frame. It is stronger than aluminum yet incredibly light, with a net weight of only 18.8kg. This robust construction safely supports up to 136kg, offering strength without the bulk.
Powerful & Compact Performance

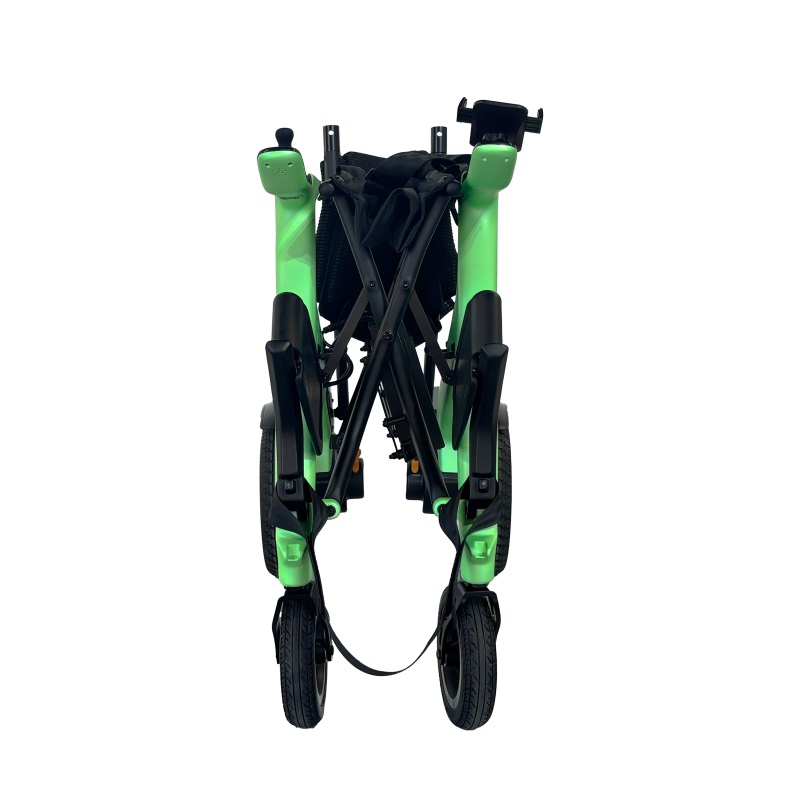

A 150W brushless motor with electromagnetic brake provides quiet, reliable power for slopes and daily terrains. With a 15km range, it handles your day with ease. Most importantly, this Foldable Electric Wheel Chair collapses to a compact size (90x39x83 cm), fitting easily into car trunks for true portability.
Smart & User-Friendly Design
The design prioritizes your safety and convenience. It features real-time speed display and an intelligent low-battery brake system. The ergonomic seat ensures comfort, while the intuitive one-button fold mechanism makes storage and transport effortless.
Advanced Wheel & Suspension System
Front: 7.5-inch non-puncture aluminum wheels with PU tires and shock-absorbing springs for smooth navigation over bumps.
Rear: 12-inch durable PU tires on aluminum hubs for enhanced comfort and excellent traction.
In Summary
This is the ultimate Lightweight Carbon Fiber Wheelchair that doesn't compromise. It's the perfect fusion of minimalist design, robust strength, and the ultimate convenience of a Foldable Electric Wheel Chair.

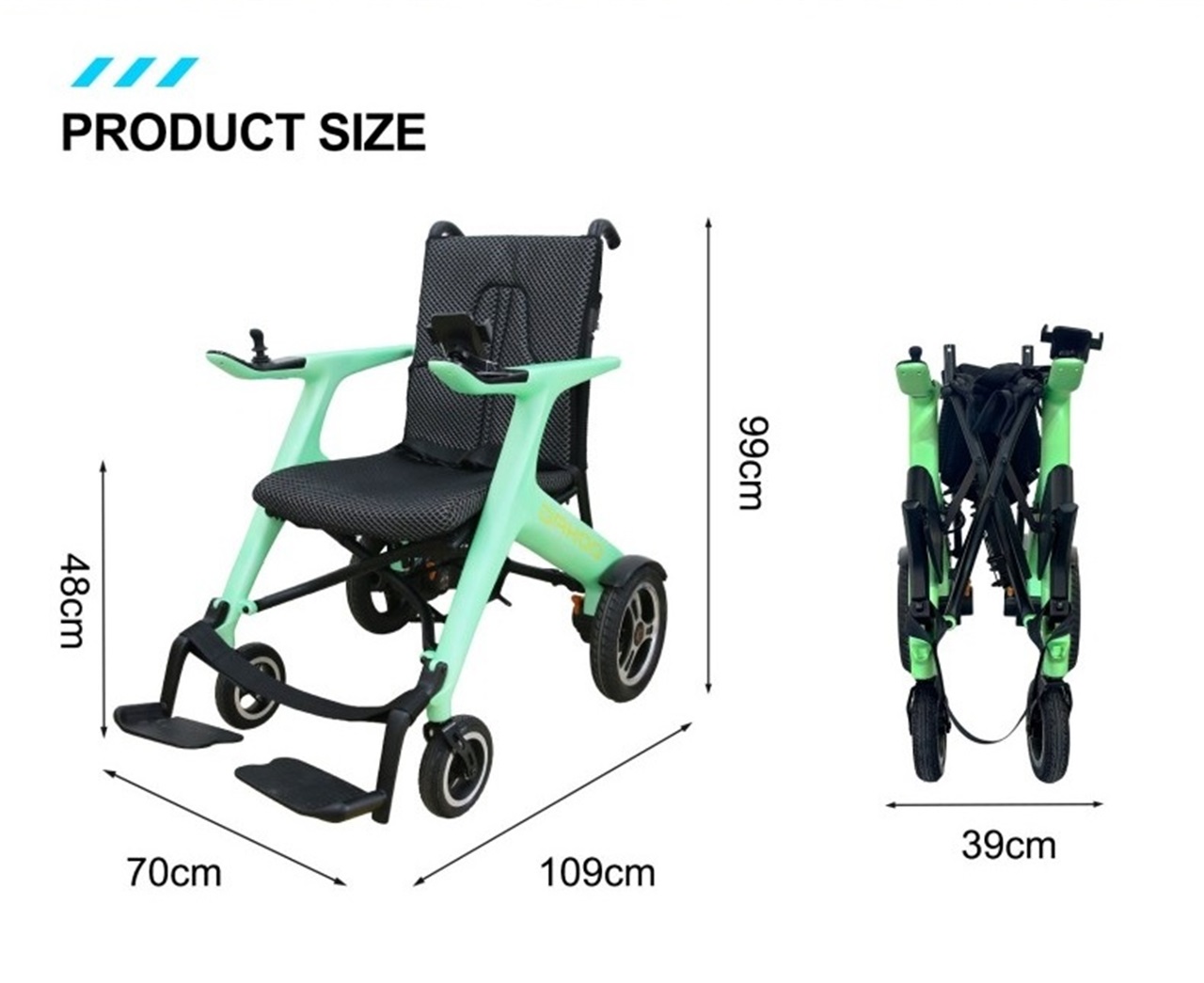

Mode | DH01129-46 | Frame Material | Carbon fiber |
Overall Length | 1090±10MM | Blushless Motor Power | 150W*2 with electromagnetic brakes |
Overall Width | 700±10MM | Lithium Battery | 24V 12AH |
Overall Height | 990±10MM | Front Wheel | 7.5” |
Stowed Length | 900±10MM | Rear Wheel | 12” |
Folded Width | 390±10MM | Maximum Speed | ≤4.5km/h |
Stowed Height | 830±10MM | Horizontal Braking Performance | ≤1.0 m |
Backrest Height | 480±10MM | Maximum Safe Braking Slope | ≤1.6 m(3°) |
Seat Width | 450±10MM | Hill-hold Capability | 6° |
Seat Depth | 440±10MM | Static Stability | ≥6° |
Front Seat Surface Height | 530±10MM | Dynamic Stability | ≥3° |
Front Section of Handrail Structure | 550±10MM | Leapfrogging Ability | ≥25mm |
Footrest to Seat | 500±10MM | Trench Crossing Width | 100MM |
Seat Plane Angle | 4° | Climbing Ability | ≥3° |
Backrest Angle | 12° | Turning Diameter | ≤1800 mm |
Footrest to Seat Surface Angle | 106° | Range | 15km |
Net Weight | 18.8kg(Battery case) | Loading Capacity | 136kg |
Gross Weight | 23kg | Package Size | 95CM*43CM*93CM |
