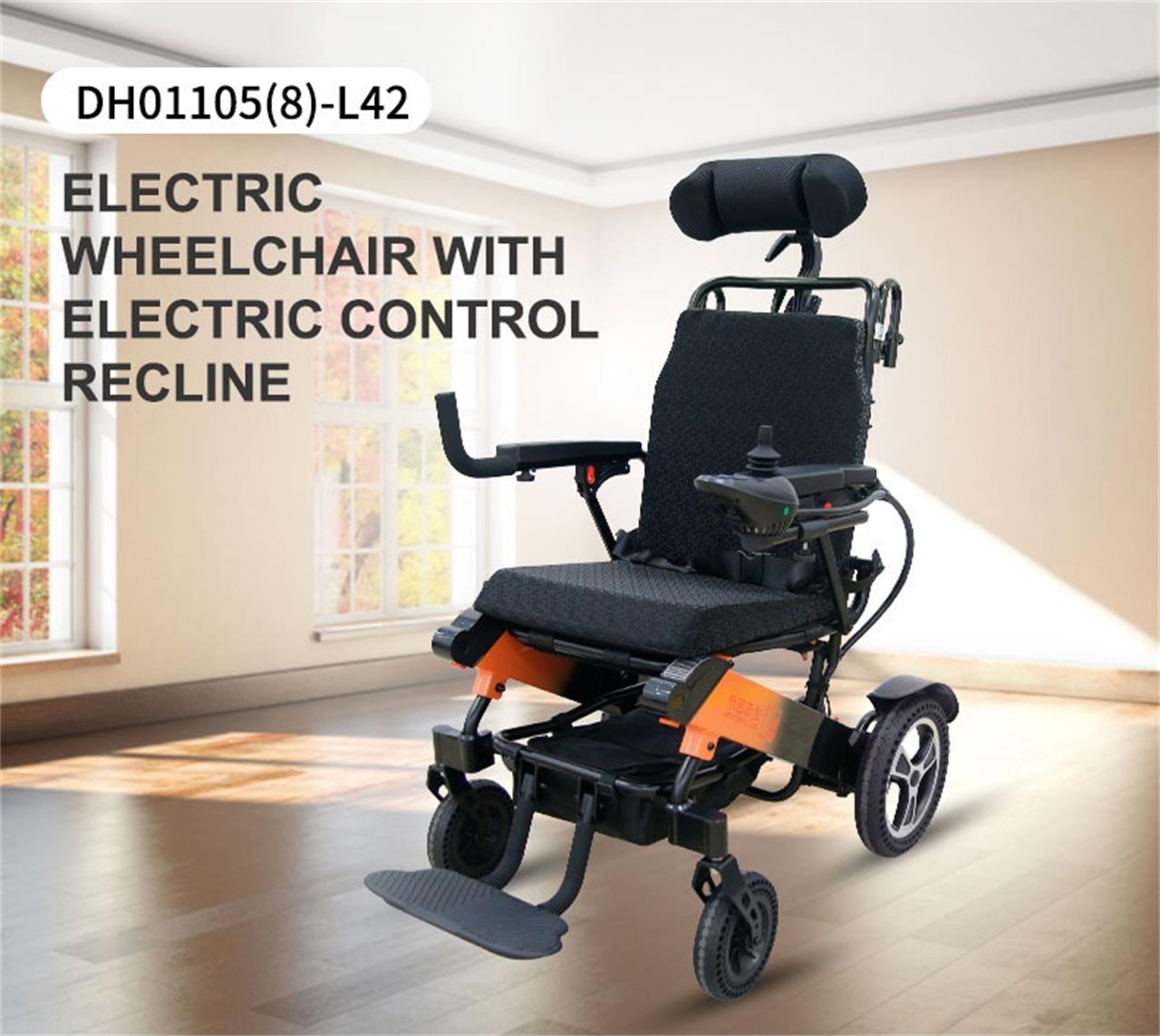

The electric wheelchair combines the robust lightness of an aluminum wheelchair frame with the effortless, personalized comfort of a reclining wheelchair, powered by a precise electric push rod mechanism.
Engineered for Strength and Everyday Convenience

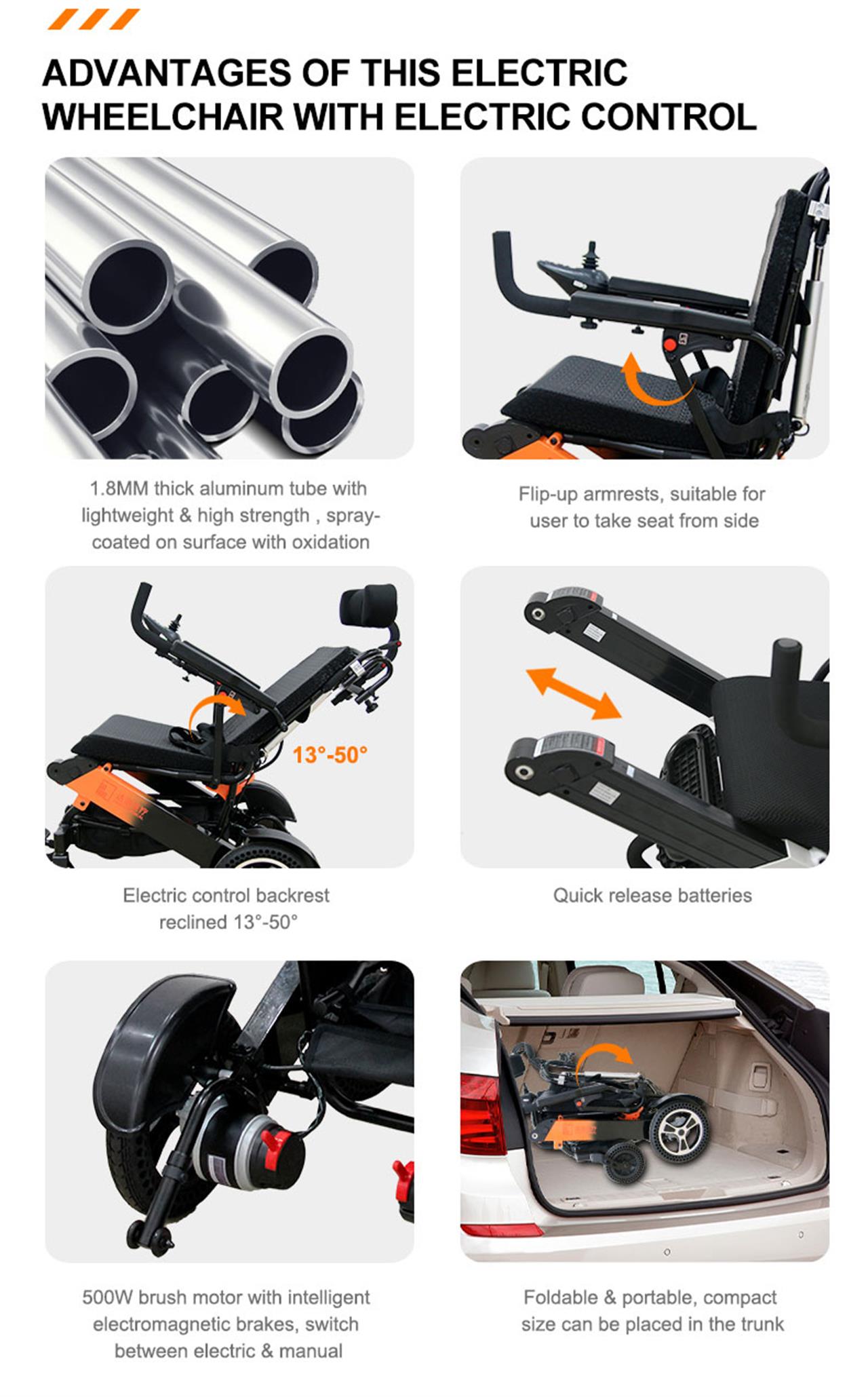

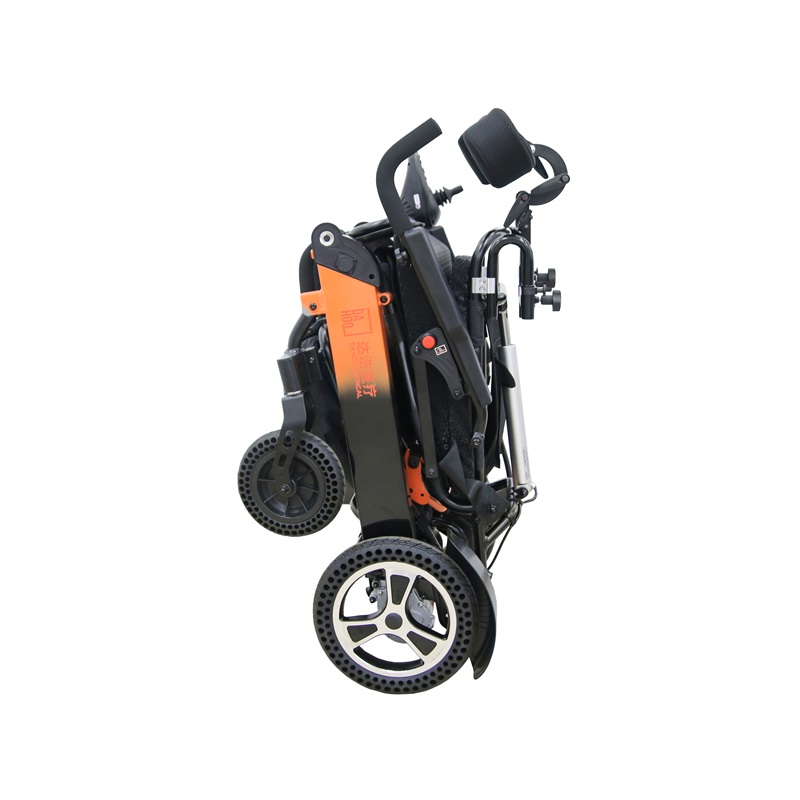

We understand that a wheelchair must be both sturdy and manageable. The electric wheelchair is built on a primary frame constructed from high-strength, large-profile aluminum alloy rectangular tubing. This advanced aluminum wheelchair construction offers an exceptional strength-to-weight ratio, resulting in a robust chassis that remains remarkably light. The frame's intelligent foldable design .
Personalized Comfort: Electrically Controlled Recline

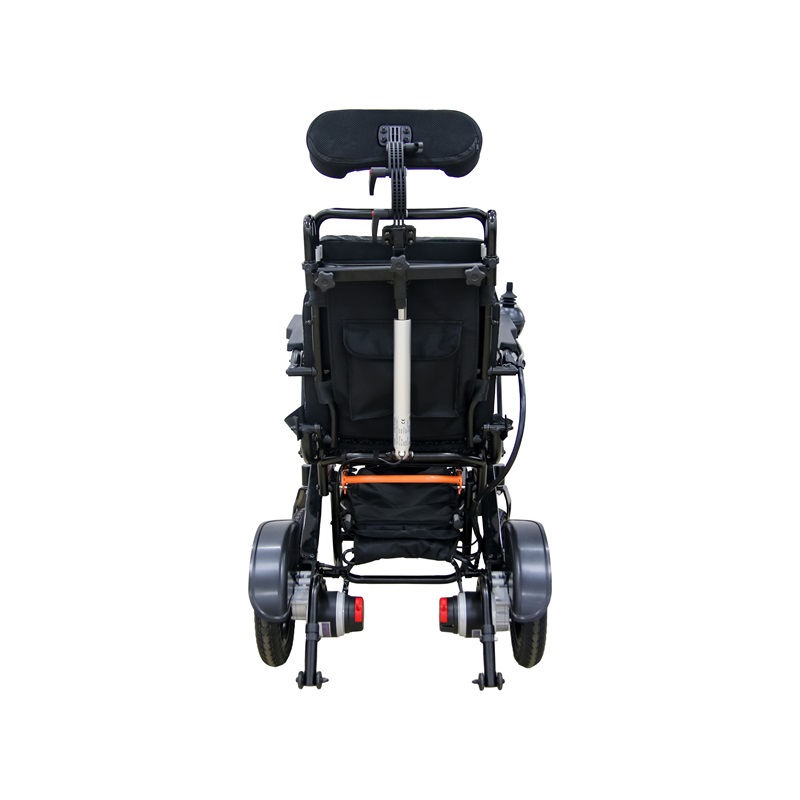

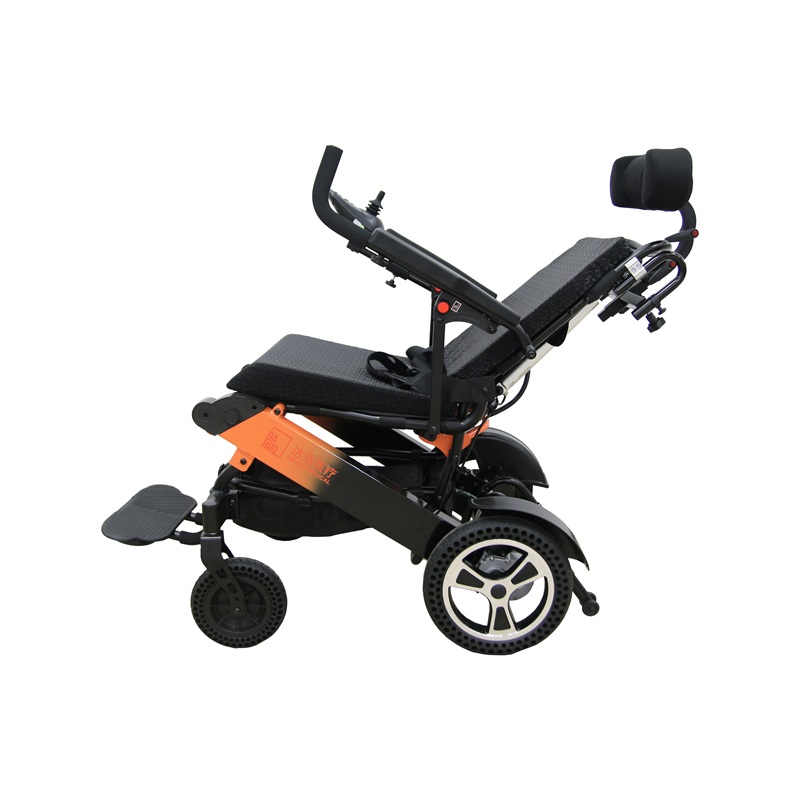

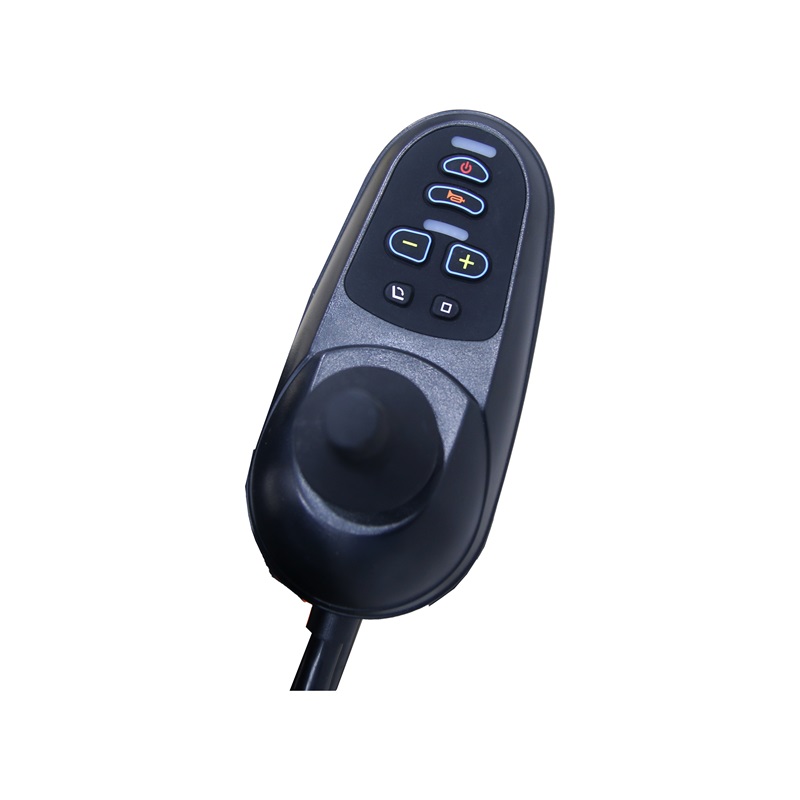

True comfort is adjustable and at your command. The defining feature of this electric wheelchair is its advanced reclining wheelchair function, activated by a smooth and reliable electric push rod. Gone are the days of manual levers or difficult adjustments. With a simple touch of a button on the standard controller, the glides seamlessly from an upright 13° position to a relaxing 50° semi-recline. This electric push rod system provides precise, powerful, and quiet operation, allowing users to find their perfect angle for dining, socializing, resting, or relieving pressure—all without assistance. The large, ergonomic seat and the adjustable footrest further enhance this tailored comfort experience.
Performance You Can Trust On Every Journey

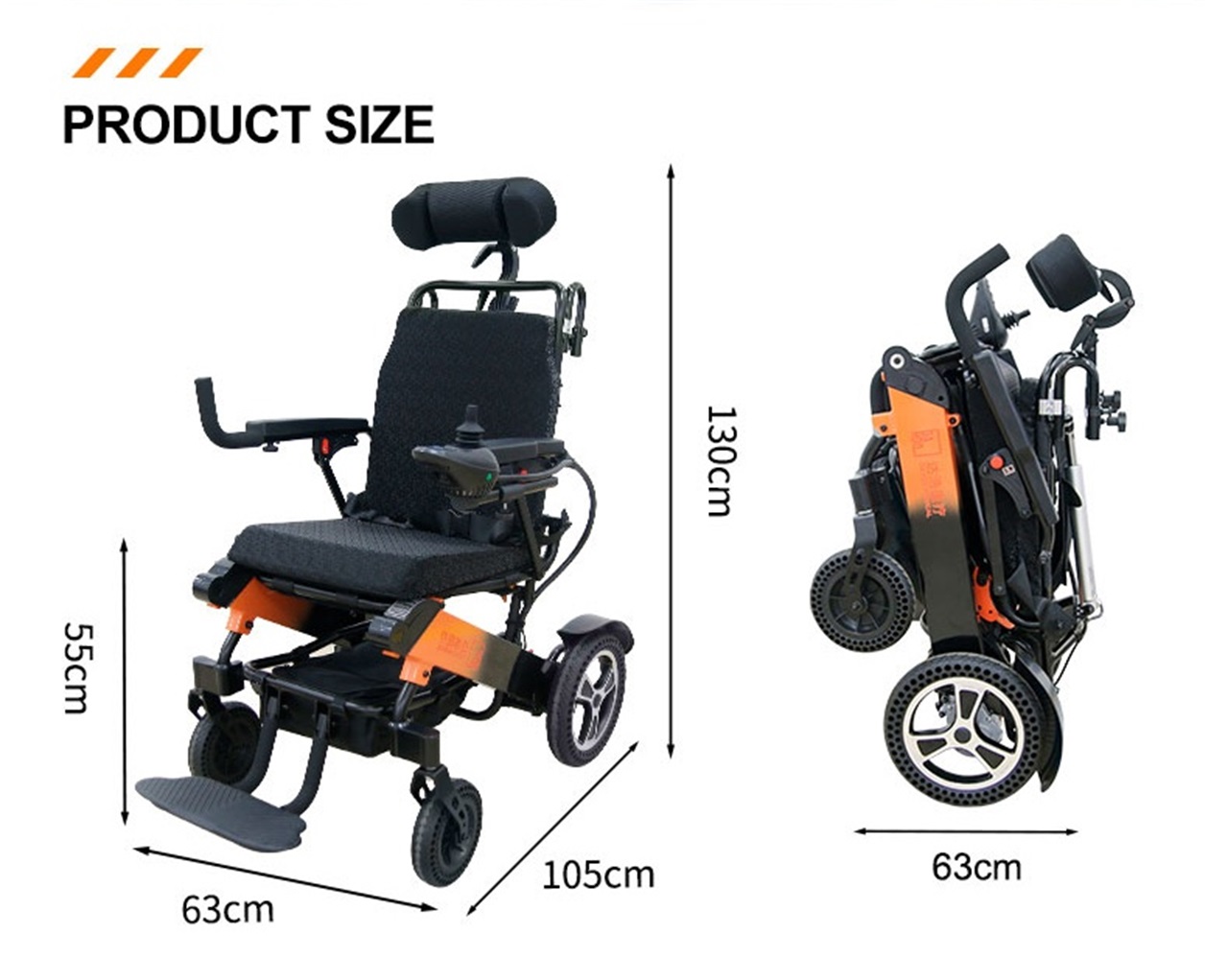

This electric wheelchair is designed for confident indoor mobility. Its compact total width of 63cm ensures easy navigation through standard doorways and tight spaces, while a tight turning diameter of ≤1800mm offers excellent maneuverability. Powered by dual 250W high-torque, brush-type motors with integrated electromagnetic brakes on the 12-inch rear wheels, it delivers smooth acceleration to a maximum safe speed of 4.5 km/h. The intelligent electromagnetic braking system ensures instant stopping when the joystick is released, providing paramount safety. Coupled with a long-lasting dual 7.5Ah lithium battery system, it offers a substantial theoretical range of up to 30km on a single charge, supporting daily activities without constant concern for power.
The Electric Wheelchair is where intelligent design meets user-centric innovation. It transforms the essential electric wheelchair into a personal comfort zone through its advanced electric push rod recline system, all housed within a durable, lightweight aluminum wheelchair frame.

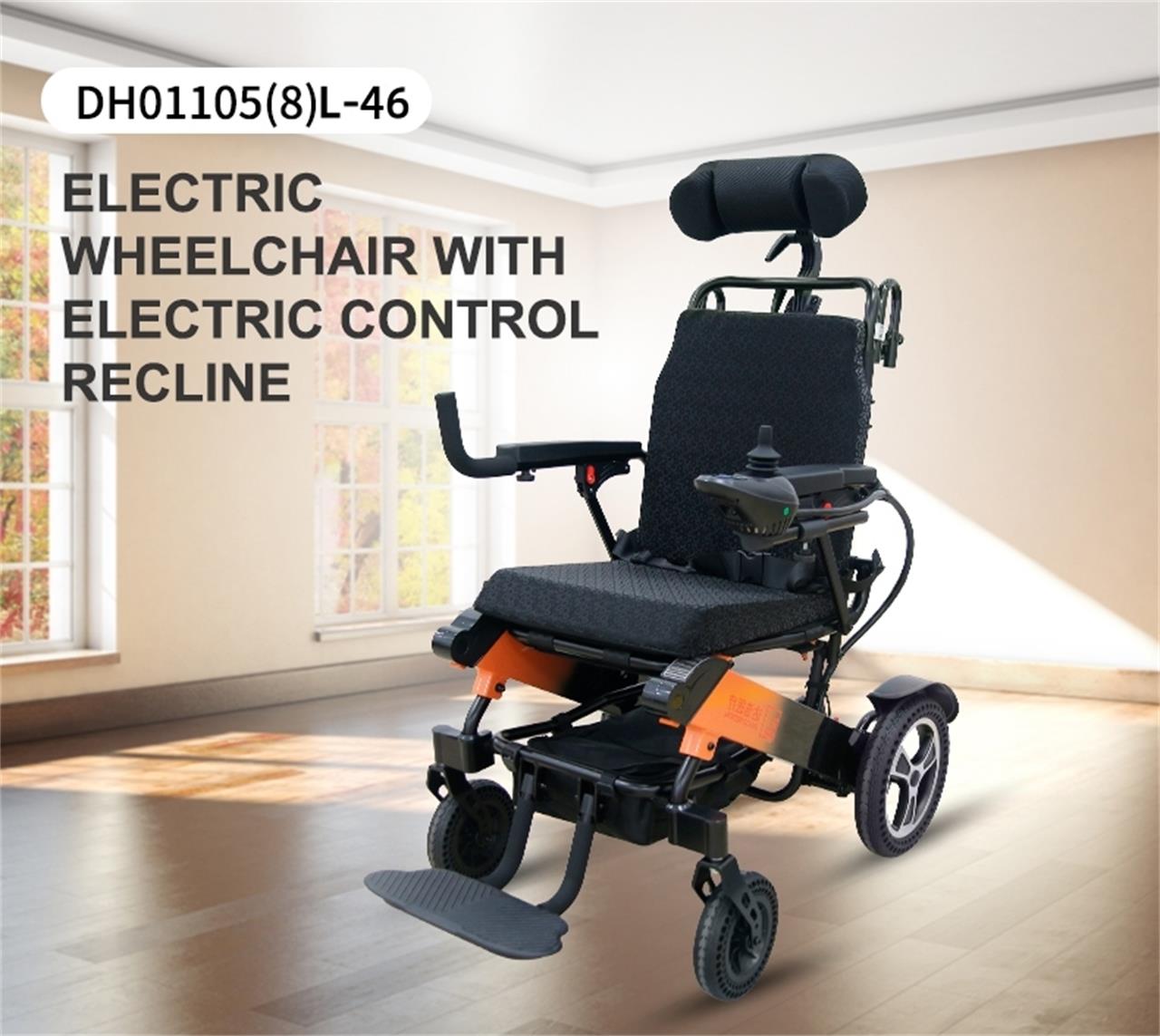

Mode | DH01105(8)L-46 | Backrest Push Rod | Electric |
Overall Length | 108+10mm | Frame Material | Aluminum alloy |
Overall Width | 630+10mm | Blush Motor Power | 250W*2 |
Overall Height | 1020±10mm 1300±10mm（With headrest） | Lithium Battery | 7.5AH*2 |
Folded Length | 630+10mm | Front Wheel | 8” |
Folded Width | 360+10mm | Rear Wheel | 12” |
Folded Height | 860+10mm | Maximum Speed | ≤4.5km/h |
Seat Width | 420+10mm | Horizontal Braking Performance | ≤1.0 m |
Seat Depth | 450+10mm | Maximum Safe Braking Slope | ≤1.6 m(3°) |
Backrest Height | 460±10mm | Hill-hold Capability | 6° |
Front Seat Surface Height | 550±10mm | Static Stability | ≥6° |
Footrest to Seat | 430±10mm | Dynamic Stability | ≥3° |
Front Section of Handrail Structure | 340±10mm | Leapfrogging Ability | ≥25mm |
Armrest to Seat Height | 210±10mm | Trench Crossing Width | 100MM |
Seat Plane Angle | 5° | Climbing Ability | ≥3° |
Backrest Angle | 13°-50° | Turning Diameter | ≤1800 mm |
Footrest to Seat Surface Angle | 105° | Range | 30km |
Net Weight | 28.5 kg 31 kg (with headrest) | Loading Capacity | 100kg |
Gross Weight | 30kg | Package Size | 64CM*45CM*93CM |
