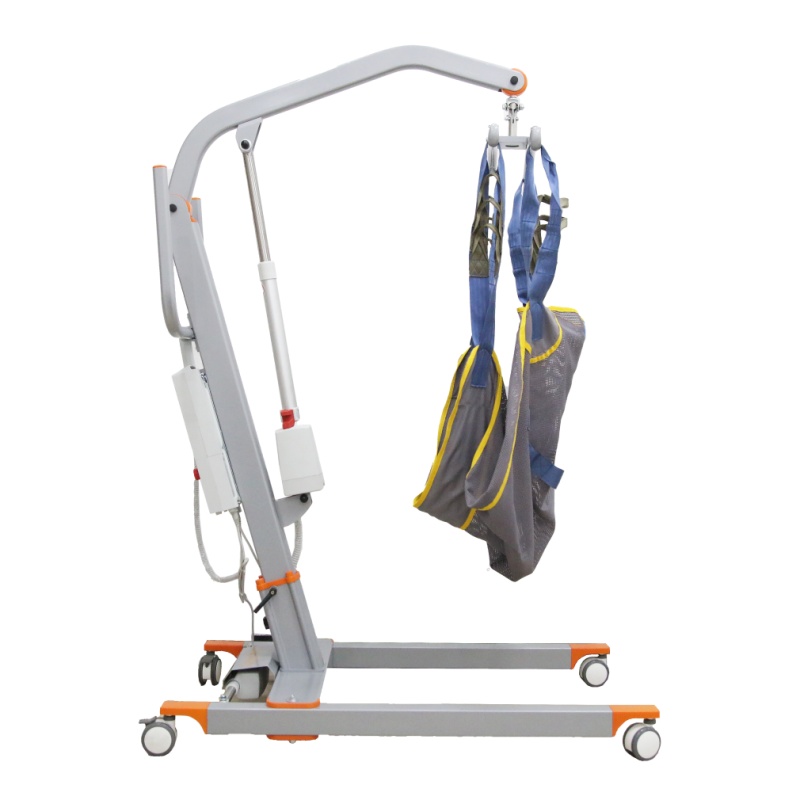

Traditional manual handling is not only physically taxing but also carries a high risk of injury. Meet our Lightweight Electric Patient Lifter – the definitive solution engineered to transform this daily challenge into a simple, secure, and dignified process. This innovative electric patient lifter is designed with a deep understanding of real-world clinical and home care needs.

The Core of Strength and Lightness: The Unmatched Advantage of Our Aluminum Alloy Lift

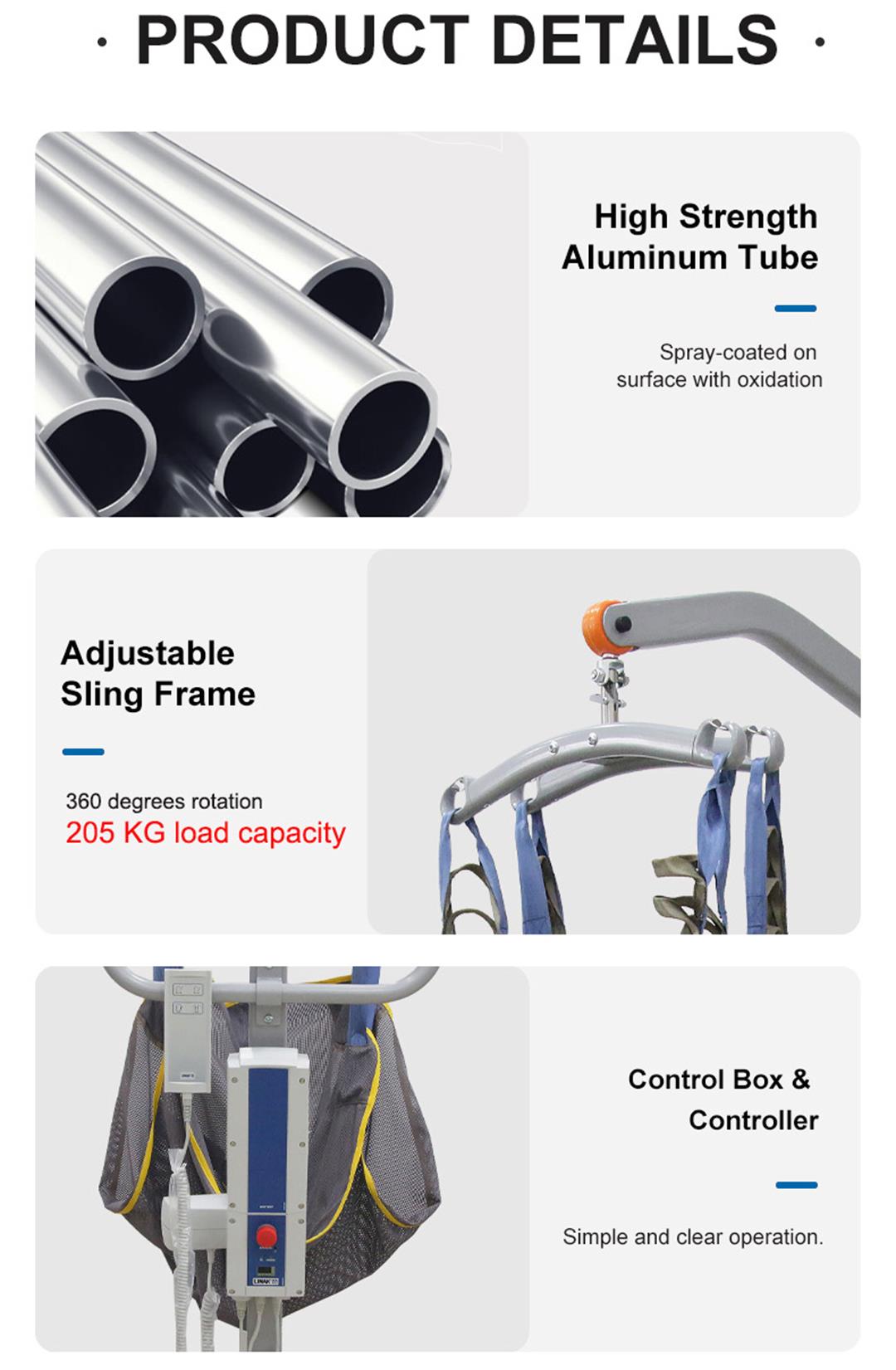

An aluminum alloy lift offers the perfect synergy of two critical qualities: exceptional strength and remarkable lightness.Our Lightweight Electric Patient Lifter is easy to reposition, even in tight spaces like bathrooms or beside a bed. This lightweight nature reduces the initial resistance for caregivers, encouraging its use for every transfer, thereby consistently preventing strain and injury. Despite its light weight, the aluminum alloy lift structure provides outstanding stability and a high weight capacity, ensuring absolute safety during operation.

Precision and Ease: The Electric Patient Lifter in Action

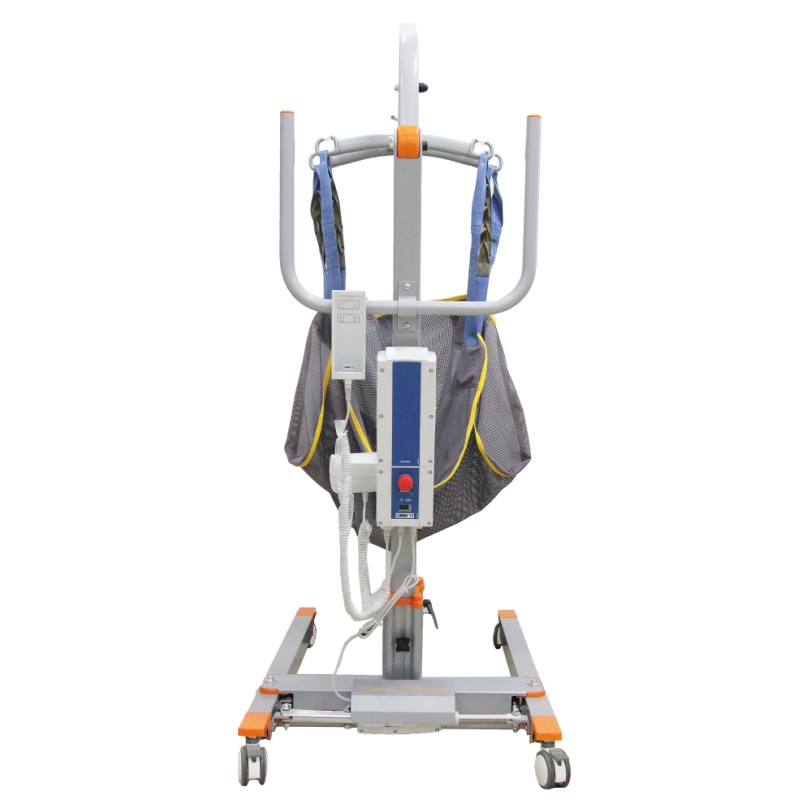

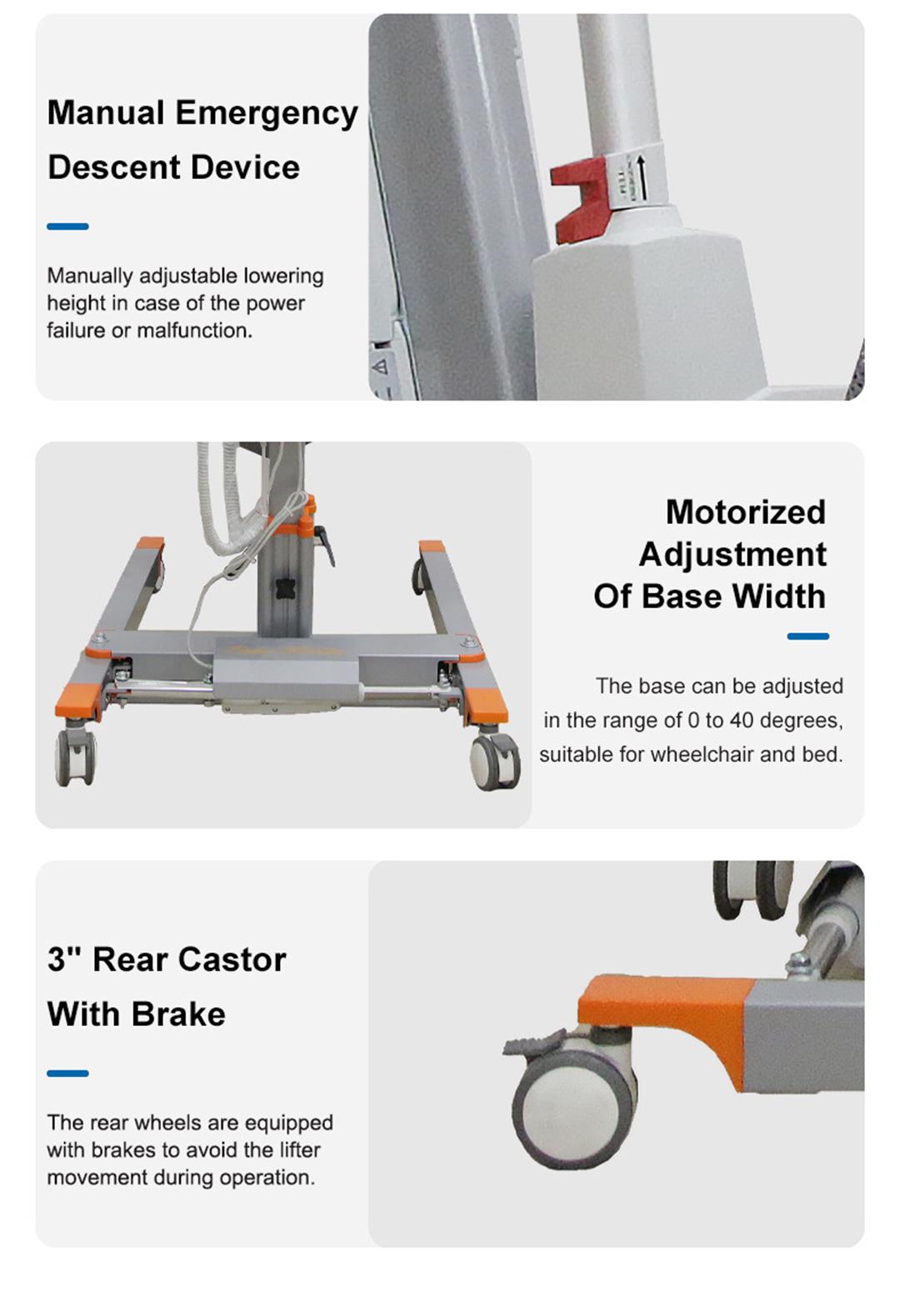

With a dedicated wired hand controller, the caregiver can effortlessly raise or lower the patient with the simple push of a button. This smooth, powered lift mechanism allows for micro-adjustments, enabling perfect alignment when moving a patient from a bed to a wheelchair, or from a chair to a toilet. The lift action is gentle and controlled, eliminating the sudden jolts or tilts that can cause anxiety and discomfort for the patient. Furthermore, the electric patient lifter features an emergency stop switch and a battery level indicator, putting full control and peace of mind in the caregiver's hands. Crucially, the electric push rod includes an emergency manual lowering device, ensuring a safe descent even in the unlikely event of a power issue.

Designed for Real-World Scenarios: Beyond the Basic Lift
A superior electric patient lifter must do more than just go up and down. Our Lightweight Electric Patient Lifter is packed with intelligent features that make it adaptable to virtually any environment.
Scissor-Style Legs: The electric, scissor-style opening legs allow the base width to be adjusted. This means the lift can be safely used over a toilet, snugly around a narrow-sided chair, or in a spacious bedroom, providing unparalleled stability across different scenarios.
Enhanced Mobility and Safety: Equipped with two 3-inch swivel casters at the front for supreme maneuverability and two 3-inch swivel casters with brakes at the rear, this electric patient lifter is easy to guide into position and lock securely in place before initiating a lift.
Patient-Comfort Sling: The high-strength sling is soft, breathable, and features a four-position height adjustment. This ensures patient comfort and security, making the experience of being in the lift far more comfortable. The rotating hook makes it easy to fine-tune the patient's position during the transfer.

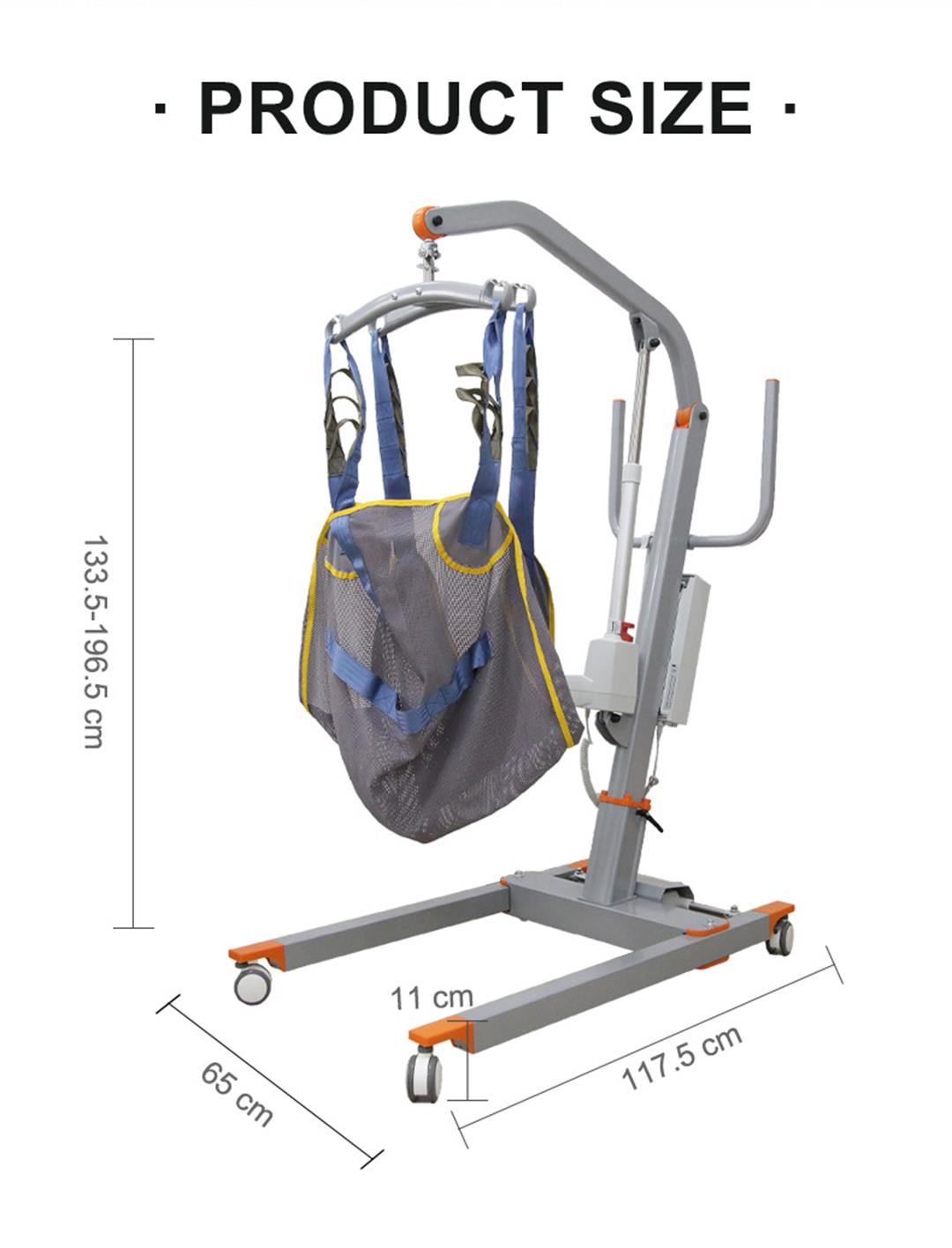

Item No. | DH079009 | Input Power Supply | AC 100V-240V/50-60HZ |
Overall Length | 1175±10mm | Lead-acid Battery | DC24V 2.6AH |
Overall Width | 650±10mm | Outrigger Electric Actuator | 3000N 24V |
Overall Height | 1335~1965±10mm | Boom Electric Actuator | 10000N 24V |
Outer Width of Outrigger | 650~1165±10mm | Front Wheel Diameter | 3 inch universal |
Inside Width of Outrigger | 550~1070±10mm | Rear Wheel Diameter | 3inch universal with brake |
Leg Opening Angle | 40° | Noise Level | <65dB(A) |
Height of Outrigger Use | 110±5mm | Packing Size | 126*71*41.5cm |
Maximum Depth | 765±10mm | Loading capacity | 205KG |
Double Boom | Net weight 38.5kg Gross weight 45.5kg | Single Boom | Net weight 37.5kg Gross weight 44.5kg |
Height of Double Boom | 390~1720±10mm | Height of Single Boom | 405~1750±10mm |
This robust patient lifting equipment features high-strength steel for exceptional durability, ensuring safe and effortless patient transfers with smooth, battery-powered operation. Designed for versatility across various care settings, The power patient lift’s long-lasting battery allows continuous use without frequent recharging.
MoreThis aluminum motorized patient lift combines robust construction with advanced safety features. Its electric control ensures smooth operation while the adjustable sling provides optimal patient comfort. Perfect for safe transfers in various healthcare settings.
