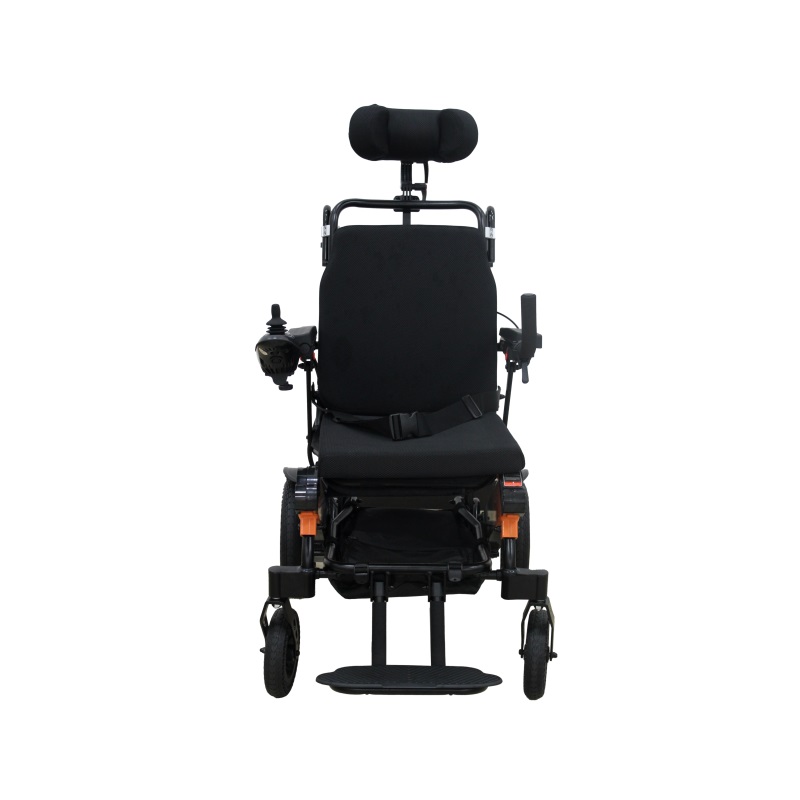

Electric Wheelchair with Hydraulically Controlled Backrest Push Rod

The core of the DH01105(8)L-46 electric wheelchair design lies in its advanced hydraulic push rod system, which sets a new benchmark for comfort in reclining wheelchairs.This, combined with a robust aluminum wheelchair frame and intelligent electric drive, creates an unparalleled experience for users seeking both reliability and luxury.

Uncompromising Comfort with a Advanced Hydraulic Push Rod

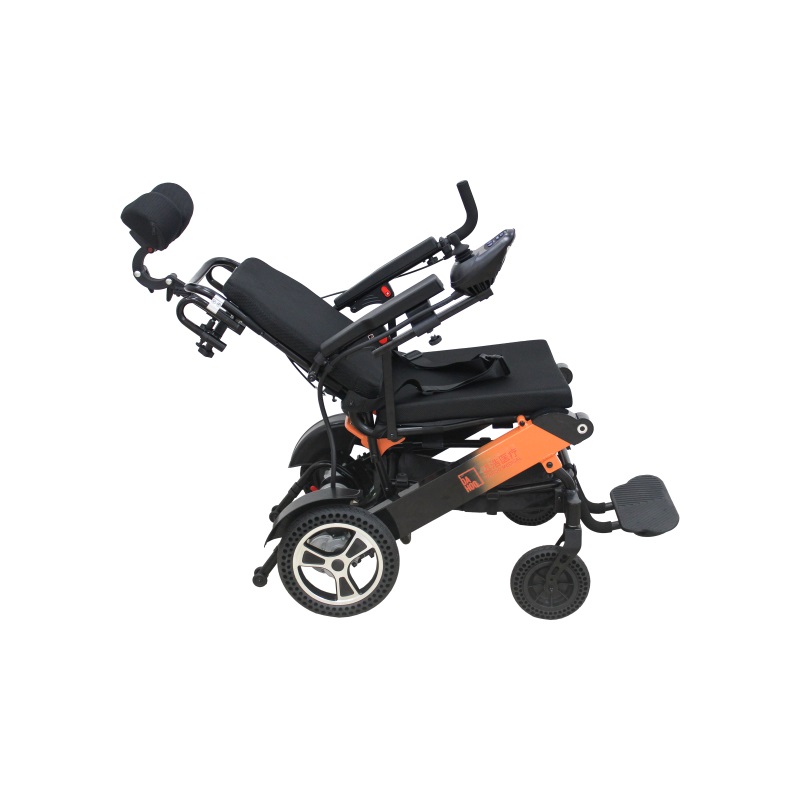

The cornerstone of the DH01105(8)L-46 is its ingeniously designed hydraulic push rod. This system moves beyond the limitations of manual or basic electric recline mechanisms. It allows for an exceptionally smooth and controlled adjustment of the backrest from an upright 13° to a relaxed 50° semi-recline position. Unlike jerky or stiff mechanisms, the hydraulic push rod ensures a steady and quiet motion, eliminating sudden jolts and providing superior support for users with back pain, limited core strength, or those who simply wish to rest comfortably throughout the day.

The Strength and Lightness of an Aluminum Wheelchair Frame

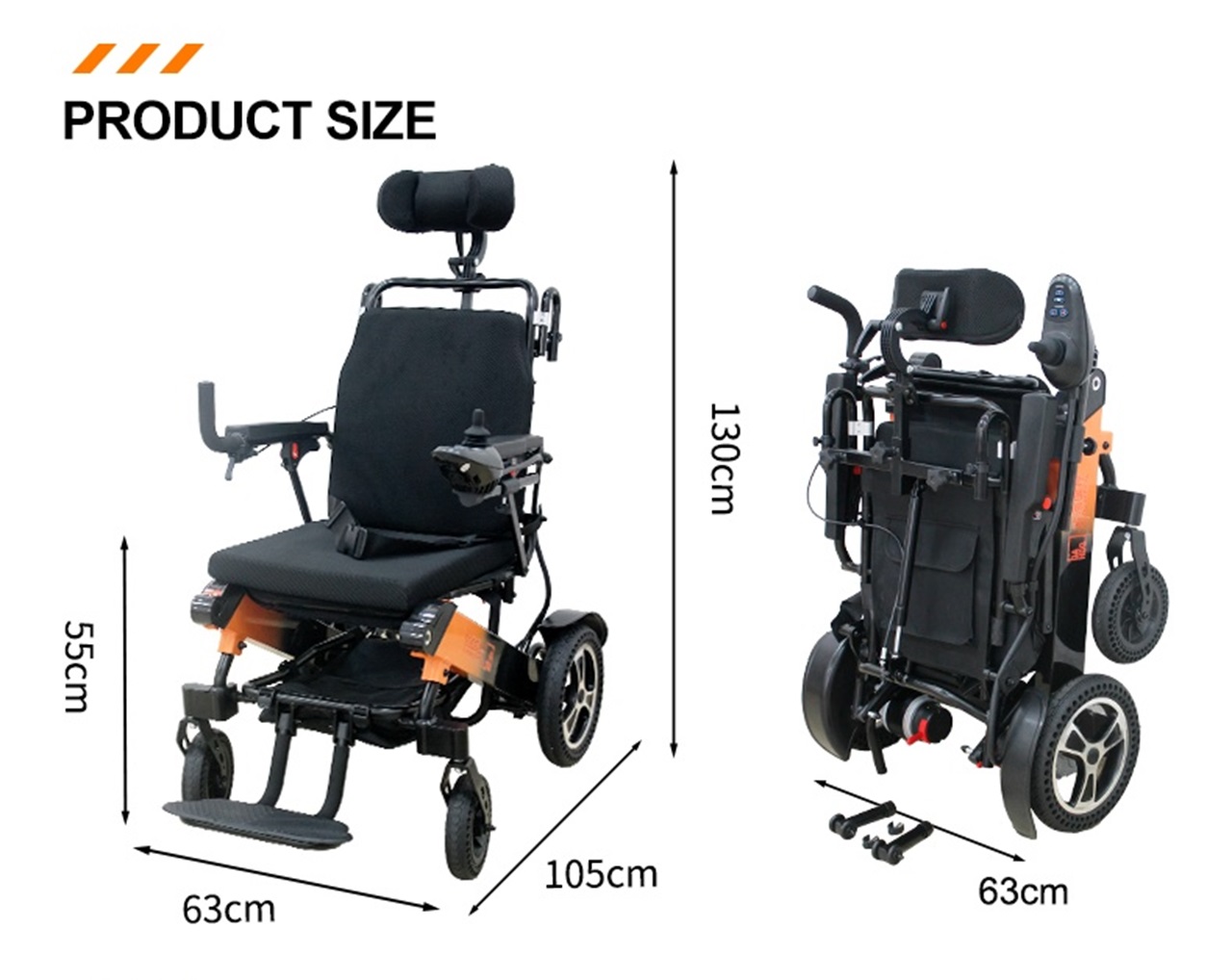

The main chassis of this electric wheelchair is constructed from high-strength aluminum alloy flat tubes, It results in a frame that is incredibly robust and capable of supporting up to 100kg, yet remarkably lightweight. The aluminum wheelchair structure is not only built to last but also contributes significantly to the chair's overall manageability. With a net weight of just 28.5kg (without headrest) and a clever folding design, this electric wheelchair can be easily collapsed for transport and storage, fitting compactly into a car trunk. The aluminum wheelchair frame is also spray-coated for enhanced resistance to oxidation and aging, ensuring a pristine appearance over years of use.

Powerful and Safe Electric Wheelchair Performance

The full-featured electric wheelchair is powered by dual motors, delivering a combined power output that ensures a maximum speed of 4.5 km/h and a impressive theoretical range of up to 30 km on a single charge. This electric wheelchair is equipped with intelligent electromagnetic brakes, which activate instantly when the joystick is released, providing peace of mind and superior safety on various terrains. Its capabilities include conquering slopes of up to 6°, overcoming obstacles up to 25mm, and navigating a tight turning diameter of ≤1800mm, making it highly maneuverable in indoor spaces.

The Ultimate Reclining Wheelchair Experience

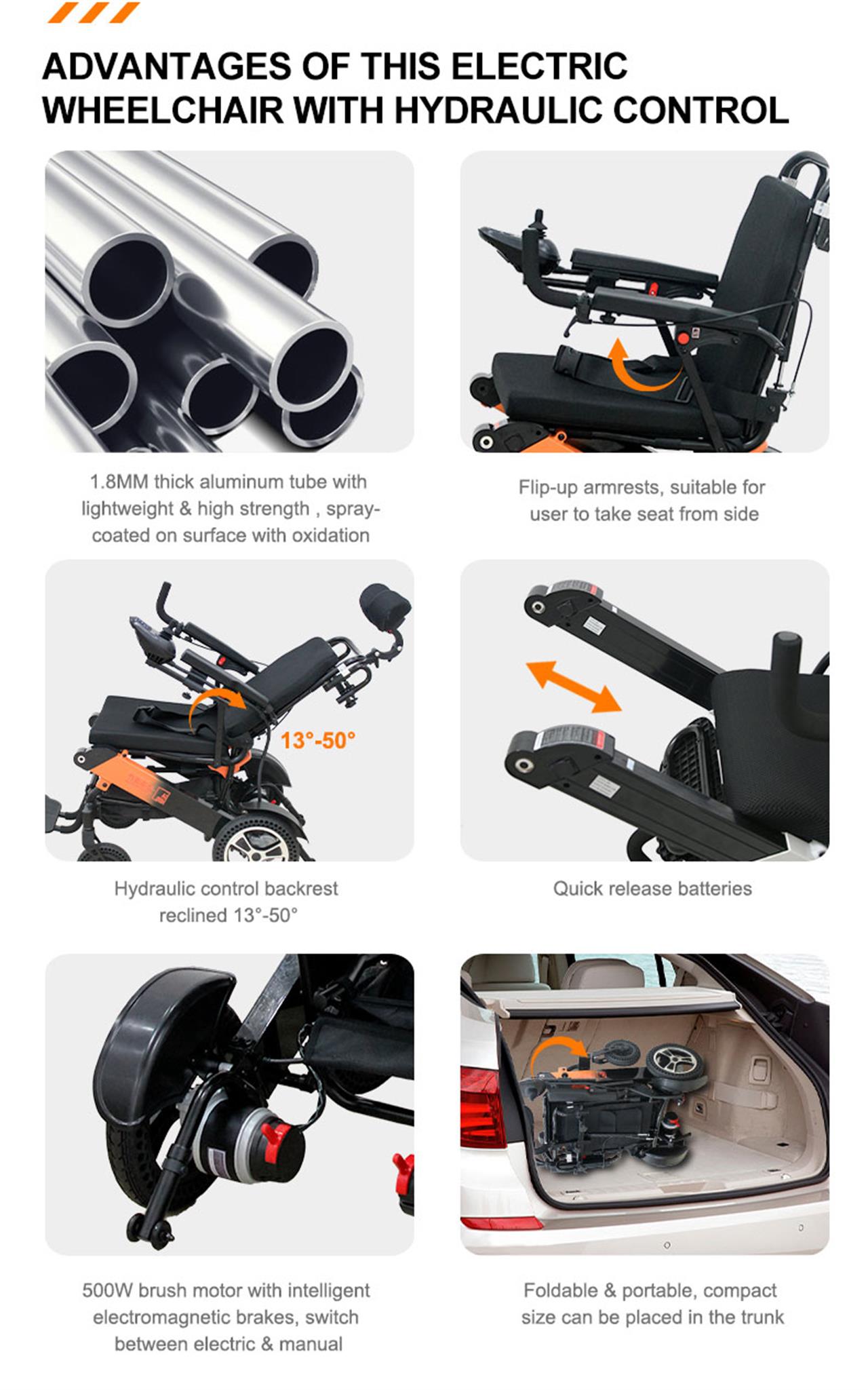

Every aspect of this model is designed to enhance the user's experience, solidifying its status as a premium reclining wheelchair. The flip-up armrests with soft PU pads allow for easy side transfers, while the quick-release batteries simplify charging and maintenance. The seat is ergonomically designed with a 5° plane angle for optimal thigh support, and the 8-inch front non-pneumatic honeycomb tires provide a cushioned and maintenance-free ride.

The innovative hydraulic push rod delivers unmatched comfort, the resilient aluminum wheelchair frame guarantees lasting durability, and its powerful performance defines it as a reliable electric wheelchair. For anyone in search of a high-performance, comfortable, and versatile reclining wheelchair, this model represents the perfect synergy of advanced engineering and human-centered design, truly redefining what it means to move independently.
