Integrated Care Bed & Wheelchair System

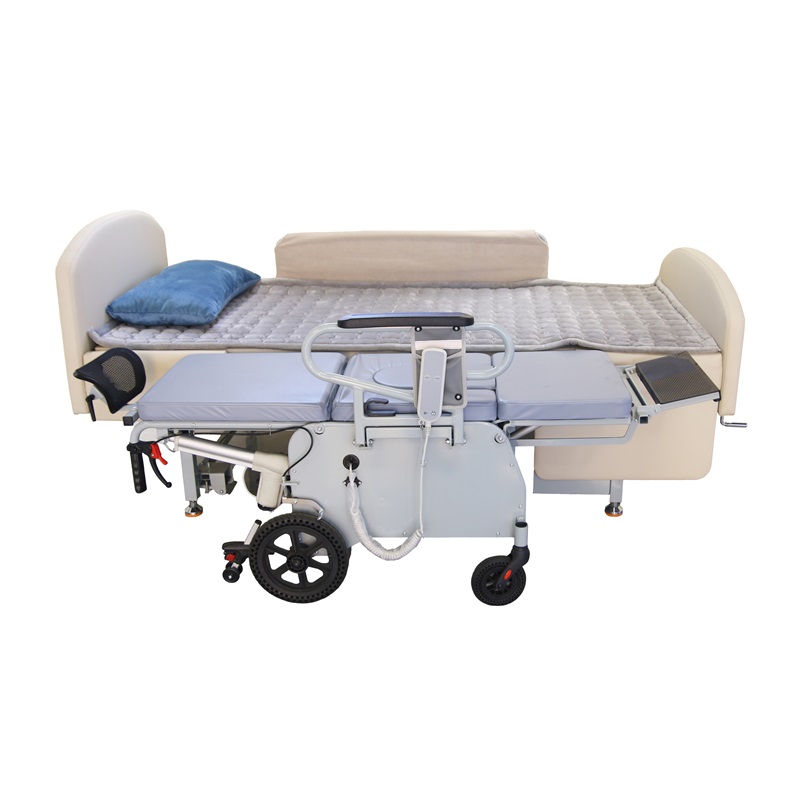

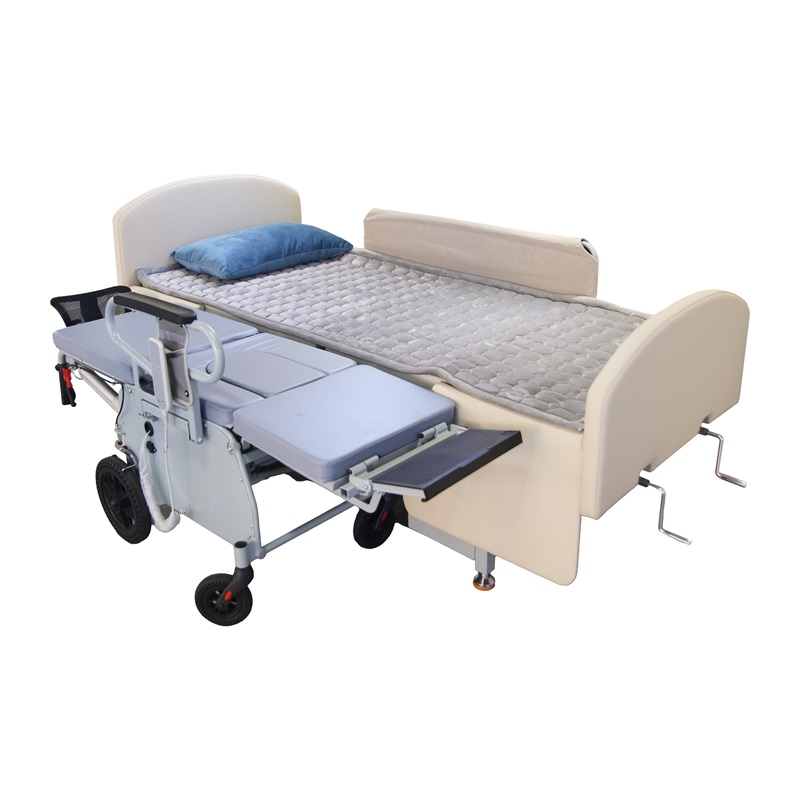

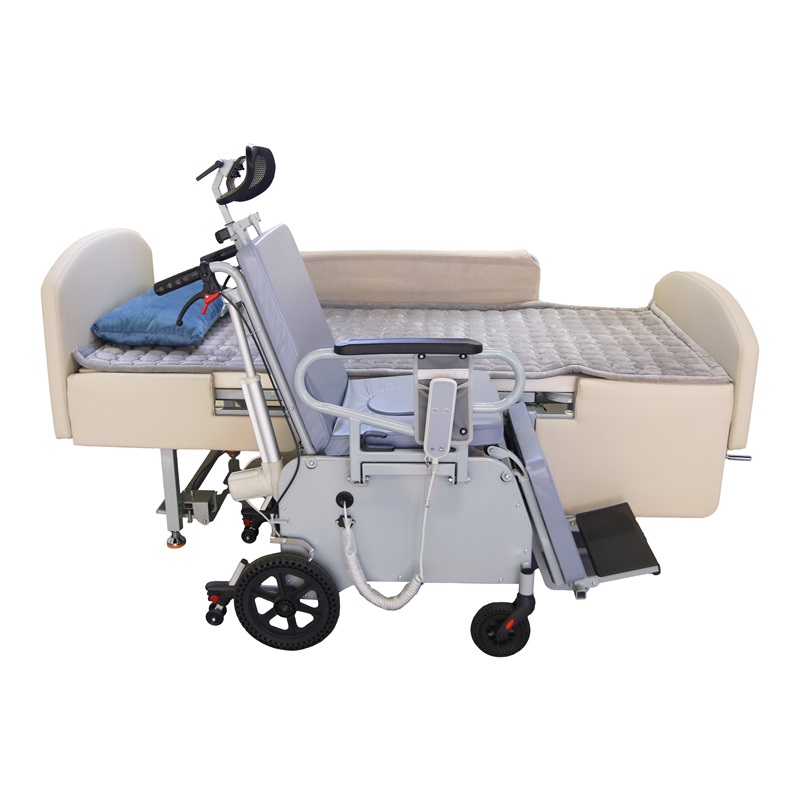

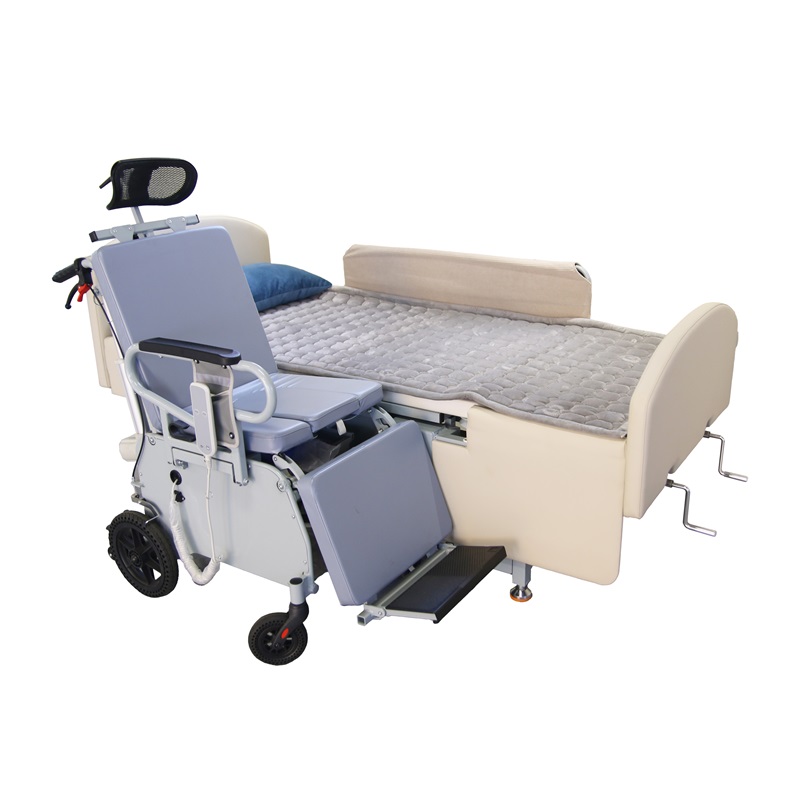

The DH0M40J(2) Integrated Care Bed and Wheelchair System combines a home hospital bed with a detachable wheelchair. Transcending the concept of a traditional care bed, this system integrates the hospital bed and wheelchair into a synergistic unit, fundamentally redefining safety, user dignity, and independence in daily living.

1. Robust Bed Structure

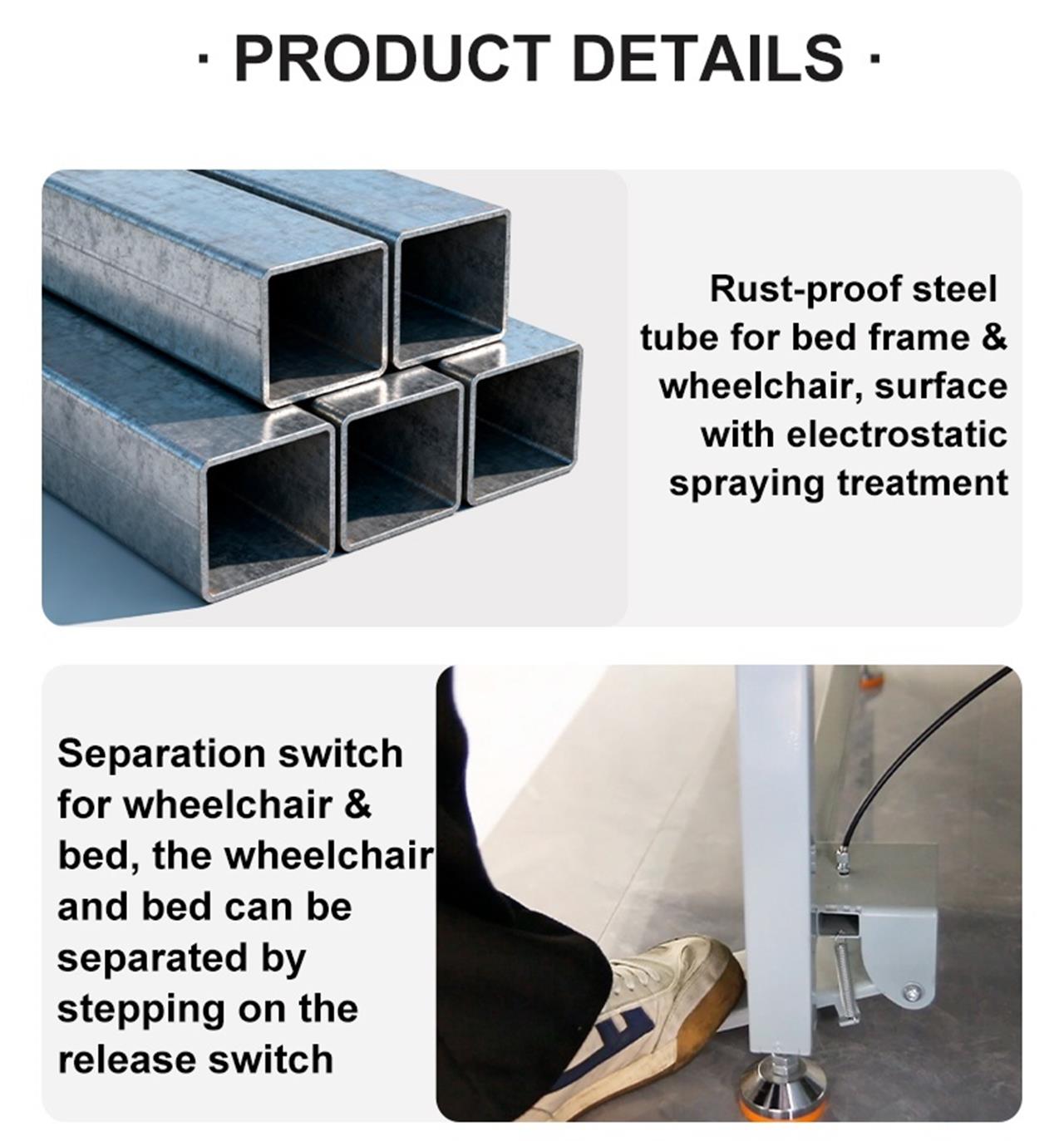

As the foundation of the system, this care bed features a frame constructed from A3 square steel tubes with a wall thickness of 1.2mm. The electrostatic powder coating provides exceptional rust resistance, high safety, and robust durability. The bed's backrest and leg sections are multi-angle adjustable (backrest ≤73°±5°, leg section ≤36°±5°), offering optimal and comfortable positioning for the user.

2. Precision-Engineered Wheelchair Design

The matching wheelchair frame is welded from 6061T6 aluminum square tubes. Key stress points, such as push-rod supports, use 25*25*3.0mm square tubes, and bracket connection points are reinforced with 5mm-thick aluminum alloy plates, ensuring overall strength and safety. This makes the hospital bed wheelchair not only lightweight but also highly load-bearing (120kg).

3. User-Centered Core Features

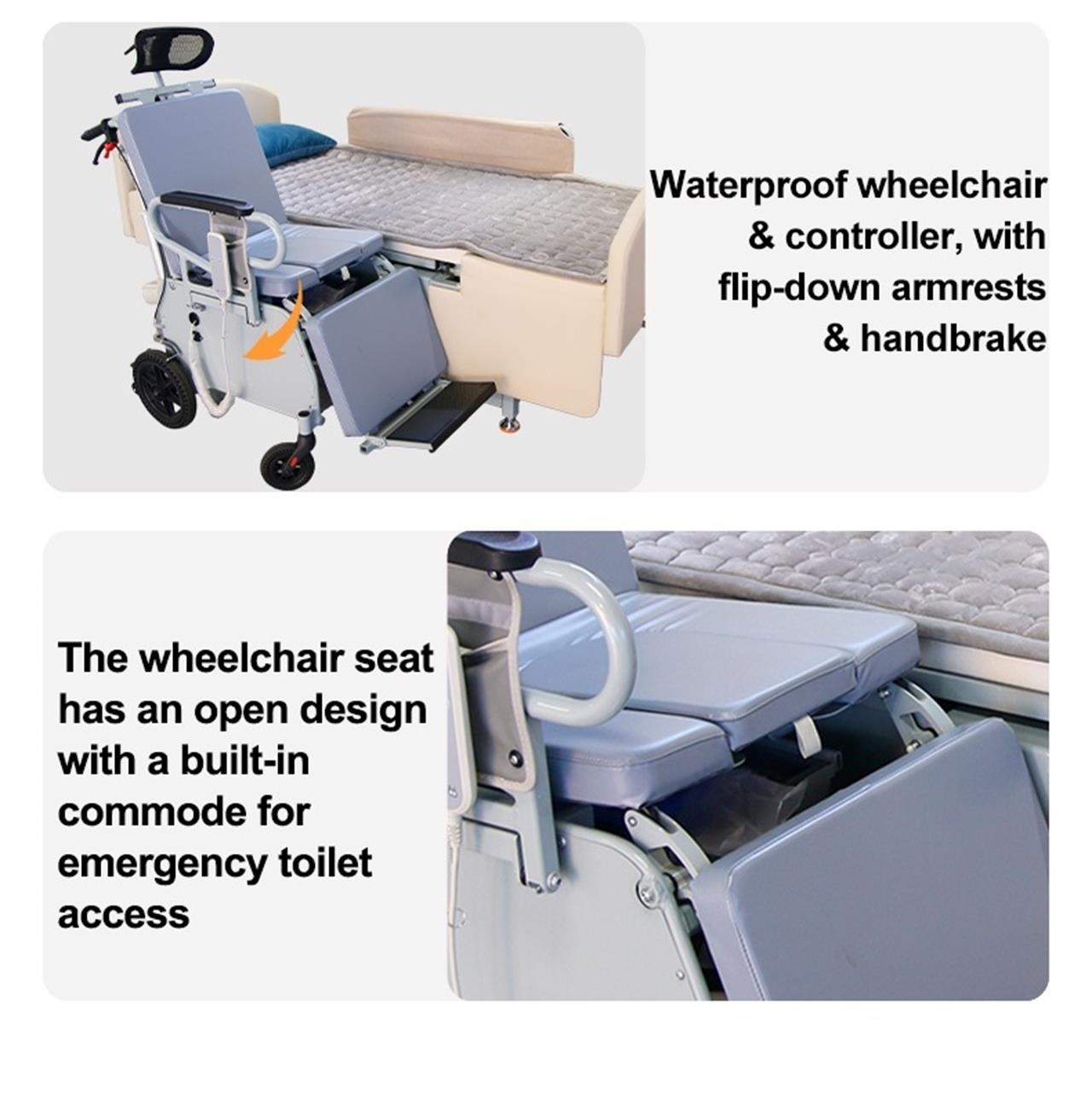

 ·Seamless Transformation & Waterproofing: The wheelchair detaches from the bed with ease. The wheelchair seat uses PU foam technology, and critical components like the controller and battery meet IPX6 waterproof standards, simplifying cleaning and hygiene maintenance for caregivers.

·Comfort & Convenience: The wheelchair seat features an open design with a built-in commode, balancing convenience for emergency toileting with user dignity. The seat is designed with a 10-degree recline angle for enhanced comfort during prolonged sitting. The matching mattress is filled with high-density foam, providing softness and strong support, and the mattress cover is removable and washable.

·Safety Assurance: The bed is equipped with five-position adjustable aluminum alloy folding guardrails, complementing the wood-grain finish of the headboard and footboard. The wheelchair features a linked braking system with an automatic locking function, ensuring parking safety.

Conclusion

The DH0M40J(2) integrated system eliminates a critical step in caregiving—the transfer process from a nursing bed to a standard wheelchair. More than just a combination of bed and wheelchair, it offers a comprehensive solution that reduces the physical burden on caregivers while restoring mobility and dignity to users, making complex home care simpler and more efficient.
